TEST HOSE & TEST COUPLINGS

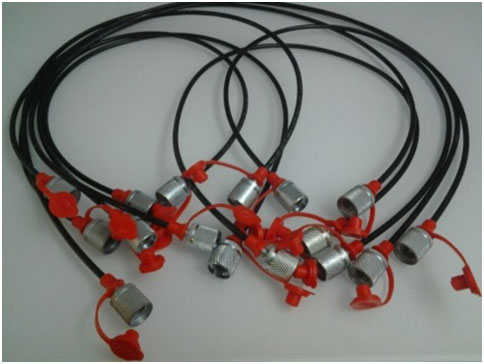

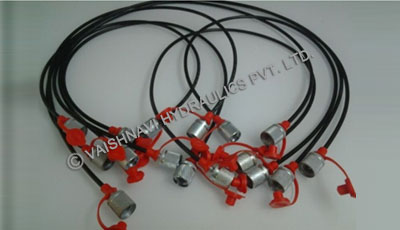

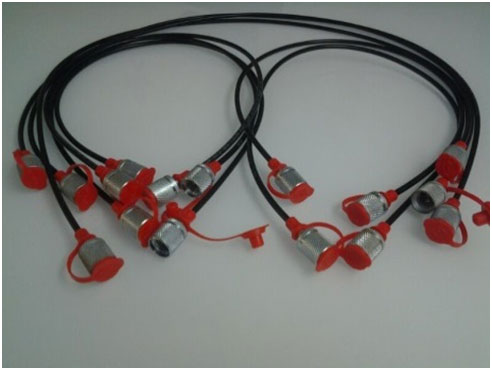

Test Hose

Test Hose is manufactured from Polyamide Synthtic braided & Stainless Steel Braided PTFE Bore Materials.
Test Hose is available in DN2 (2 mm ID & 5 mm OD)& DN4 (4 mm ID & 8 mm OD) micro bore Hose material available.
Test Hose – DN 2 – is used for up to WP 630 Bar & Burst Pressure @ 1950 Bar.
Test Hose is having minimum bend radius 20 mm & Temp resistance from -20 C to +100 C.
Test materials would be Polyester fibre as internal braided +hose core = Polyamide + outer layer would be Polyamide.
test hose is available in various lengths from 500 mm till 20 mtrs long.

test Hoses are used for various application Industries such as Servo valves manifold systems, cylinder control systems, Pump drive systems, Mobile load sensing systems in Mobile hydraulics, various hydraulic control blocks in gases application.
test Hoses are available in various sizes such as – M16 X 2 female swivel nut
