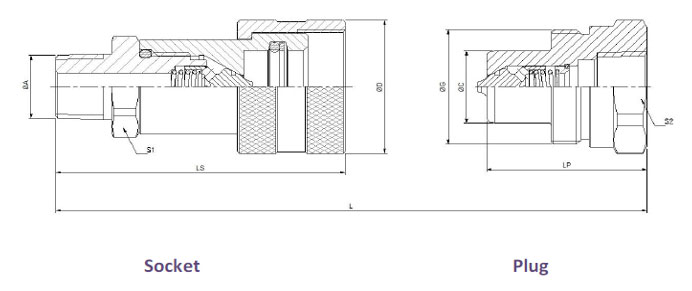

Screw Type Couplings for Jacks
| DN | Size (inch) | Thread Type Dia A |
Specifications | ||||||||
| LP | LS | S1 | S2 | Dia D | L | Dia C | Max Operating Pr | Minimum Brust Pr | |||
| 6.3 | 1/4" | 1/4" NPT | 40 | 60 | 19 | 27 | 30 | 81 | 19 | 700 | 1700 |
| 10 | 3/8" | 3/8"NPT | 40 | 73.5 | 24 | 32 | 35 | 87 | 19 | 700 | 1700 |
Note : All dimensions are in mm, unless otherwise specified. Pressure in bar.
These dimensions are for reference only and are subject to change as per design modifications.
Features
- Connection system: By screwing togetther the two parts
- Disconnecction system :By unscrewing the two parts
- shut-off system :poppet valve
- connecatble: under residual pressure
- Materials:
Body: Carbon Steel-EN1A/EN8DM
Springs: Spring Steel as per IS:4454 Grade II
Balls: AISI E-52100 Grade 100
Seals: NBR (Nitrile) Temprature Range -30° to 100°C
Backup Ring: PTFE - Surface Treatment: Zinc Plating with Cr III based Passivation.
Flow Rate Chart
| Size | 1/4" | 3/8" |
| Flow Rate (Ipm) @ 2 bar Pressure Drop | 13 | 25 |
