- Through type QRC (quick release couplings )have no check valves.
- Through type QRC are ideal for maximum flow application.
- Through type QRC having smooth, open bore offers the lowest pressure drop of any quick disconnected couplings and allows them to be through cleaned.
- Through type QRC is not having any check valves, fluid flow should be shut off before the coupling is disconnected.

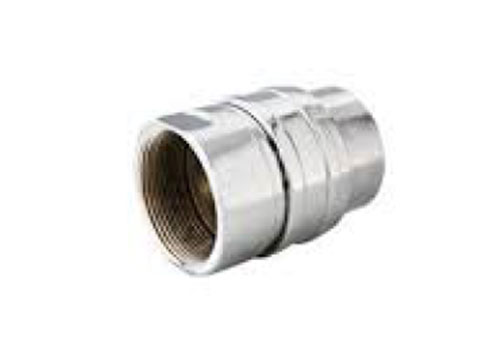

Through type QRC
Through type QRC
Application
Working Principle
Material of Construction – As Per Standards
- Where quickly detachable and rotatable connections are needed
- Also used where regulation and closure of line is achieved by back up valves
Quick release couplings are work on Push and Pull principle. When the Adaptor is pushed to the coupler, it is accurately held by the self-locking arrangement resulting in a positive & leak proof connection. This action simultaneously opens the valve & fluid flow starts. To disconnect, pull back the sleeve of the coupler, the Adaptor ejects out and the valves shut off automatically. Valves are provided in type one way sealing & two way sealing.
- Body » Available in Brass / C.S. - Chrome plated (From Bar stock only). Also available in S.S. - 304 & S.S. - 316 (From Bar stock only)
- Spring » Available in Spring Steel S.S. - 304 / S.S. - 316 as required
- Ball » Available in Steel, S.S. - 304 & S.S. - 316
- Seal Materials » Available in Nitrile, Viton, Neoprene, Silicon Materials.
