BALL VALVES

Ball valves are quarter-turn, straight through flow valves that have a round closure element with matching rounded seats that permit uniform sealing stress.
Ball valves are used in situations where tight shut-off is required.
The type of seat can vary with the valve pressure rating and materials of construction.
Ball valves seats are composed of single molded forms, while other seats with higher-pressure ratings often incorporate a trunnion design where each face of the ball is separately sealed.
Ball valves are wide duty valves, able to transfer gases, liquids and liquids with suspended solids (slurries).
Ball valves offer many advantages when contrasted with other valve types.
Ball Valves can provide superior ease of operation and can maintain and regulate high volume, high pressure and high temperature flow.
Ball valves offer rugged construction providing for a long service life, and a comparably low cost.
Additionally, the design of the regulating element allows the valve to function without the complications of side loads, typical of butterfly or globe valves, and the valve design permits inspection and repair of seats and seals without removing the valves' body from the line.
Ball valves are available in a variety of body styles, including one-piece, two-piece, three-piece and flanged body construction.
Ball valve forms offers specific advantages depending upon the requirements of the given application.
Ball Valves are designed using a wide variety of materials, as required by their application.
Ball valve materials include brass, bronze, copper, cast iron, ductile iron, stainless and other steel types, metal alloys and plastics including PVC and CPVC.
It is best to consult with the manufacturer for the specific properties of the materials used in the valve, and how this relates to the applications that include type, concentration and temperature of the media being handled.
VE-LOCK®Brand Make Ball valves are available in materials like - Steel , Stainless Steel
VE-LOCK®manufacturer Ball valves with Low pressure design up to 3000 Psi , High Pressure design up to 6000 psi & Very High Pressure Design up to 10000 psi ( On Request Only)

Types of Ball Valves	Series		Sizes For Threads	Types of Threads Available
Ball valves with Female Threads	3000	6000	1/4" up to 2"	BSPP/BSPT/NPT/UNF
Ball valves with Male Threads	3000	6000	1/4" up to 2"	BSPP/BSPT/NPT/UNF
Ball valves with Metric Tube Od	3000	6000	6 mm upto 42 mm od	Metric Threads with Nut + Ferrule
Ball valves with UNF Tube Od	3000	6000	1/4" od up to 2" od	UNF Threads with Nut + Ferrule
Ball valves with Tube to Thread End	3000	6000	6 mm upto 42 mm od	Metric to Bspp threads
Ball valves with Flanges	3000	6000	1/4" NB up to 5 " NB	SAE Flange/ ERW Flange
Ball valves with QRC End	3000	6000	1/4" up to 2"	BSPP/BSPT/NPT/UNF

Ball Valves with Flanges	Series		Sizes in NB	Sizes in OD in MM
Ball valves with Socket Weld Flange	3000	6000	1/4" NB UP TO 5 " NB	15 MM OD UP TO 140 MM OD
Ball valves with Butt Weld Flange	3000	6000	1/4" NB UP TO 5 " NB	15 MM OD UP TO 140 MM OD
Ball valves with Blind Flange	3000	6000	1/4" NB UP TO 5 " NB	15 MM OD UP TO 140 MM OD
Ball valves with Weld Nipple Type	3000	6000	1/4" NB UP TO 5 " NB	15 MM OD UP TO 140 MM OD
Ball valves with Female Thread Flange Type	3000	6000	1/4" NB UP TO 5 " NB	15 MM OD UP TO 140 MM OD
Ball valves with ORFS Flange Type	3000	6000	1/4" NB UP TO 5 " NB	15 MM OD UP TO 140 MM OD
Ball valves with Male Thread Flange Type	3000	6000	1/4" NB UP TO 5 " NB	15 MM OD UP TO 140 MM OD

Ball Valves with Tube to Tube End	W.P.- BAR	Series	Sizes for Threads	Types of Threads Available
1/8" OD up to 2" OD Tube Size	400	Heavy	1/8" up to 2"	UNF Threads both end
6 mm up to 2" 50 mm Tube Size	400	Heavy	6 mm up to 50.8 mm	UNF Threads both end

Ball Valves with Tube to Tube End	W.P.- BAR	Series	Sizes in Threads	Types of Threads Available
6 MM OD UP TO 15 MM OD	250	Light	6 to 15 mm	Metric threads both ends
18 MM OD UP TO 22 MM OD	160	Light	18 to 22 mm	Metric threads both ends
28 MM OD UP TO 42 MM OD	100	Light	28 to 42 mm	Metric threads both ends
6 MM OD UP TO 12 MM OD	630	Heavy	6 to 12 mm	Metric threads both ends
14 MM OD UP TO 25 MM OD	400	Heavy	14 to 25 mm	Metric threads both ends
30 MM OD UP TO 38 MM OD	250	Heavy	30 to 38 mm	Metric threads both ends

Ball Valves with Socket Weld type	W.P.- BAR	Series	Sizes for Threads	MOC Of Ball Valve
1/4" NB up to 5 " NB	200	3000	1/4 " NB to 5 " NB	STEEL / STAINLESS STEEL
1/4" NB up to 3 " NB	400	6000	1/4 " NB to 3 " NB	STEEL / STAINLESS STEEL

BALL VALVES

BALL VALVES

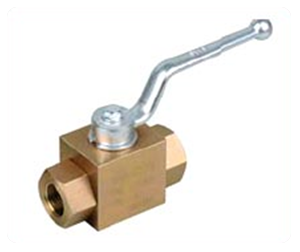

BALL VALVES – 2 WAY – HIGH PRESSURE

VE-LOCK®manufactures 2 Way Ball Valves from Solid bar stock Materials & all parts details are as below.

Materials

BALL VALVES - 2 Way Flanged End

Various types of Flange connections are available with 2 Way ball valves as below:

Materials

BALL VALVE – TUBE TO TUBE END – FOR INSTRUMENTATION TUBE SYSTEMS.

Materials

BALL VALVE – 3 WAY TYPE – HIGH PRESSURE APPLICATION

3 way Ball Valves with T port Application

3 way Ball Valves with L port Application

VE-LOCK ® manufactures 3 Way Ball Valves from Solid bar stock Materials & all parts details are as below.

Materials

BALL VALVE – TUBE TO TUBE END

Ball Valves with tube to tube end connection are available in below types & sizes:

Materials

BALL VALVE – 2 WAY –SOCKET WELD TYPE

Materials
